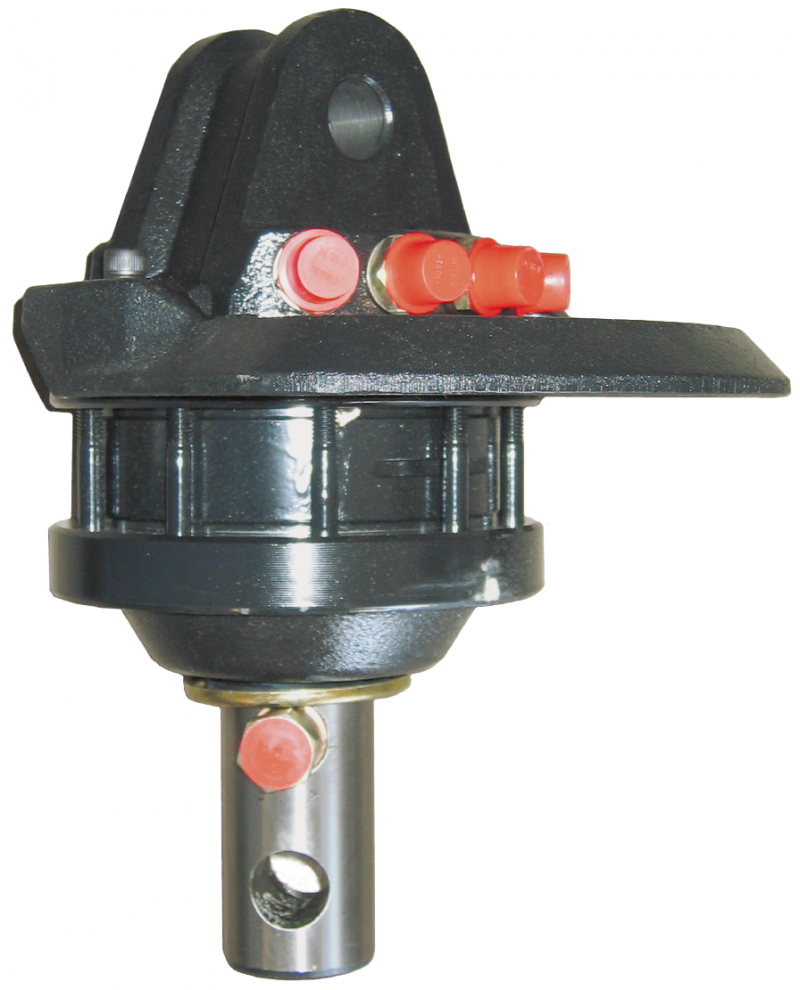

FHR 3000L Rotator avec arbre

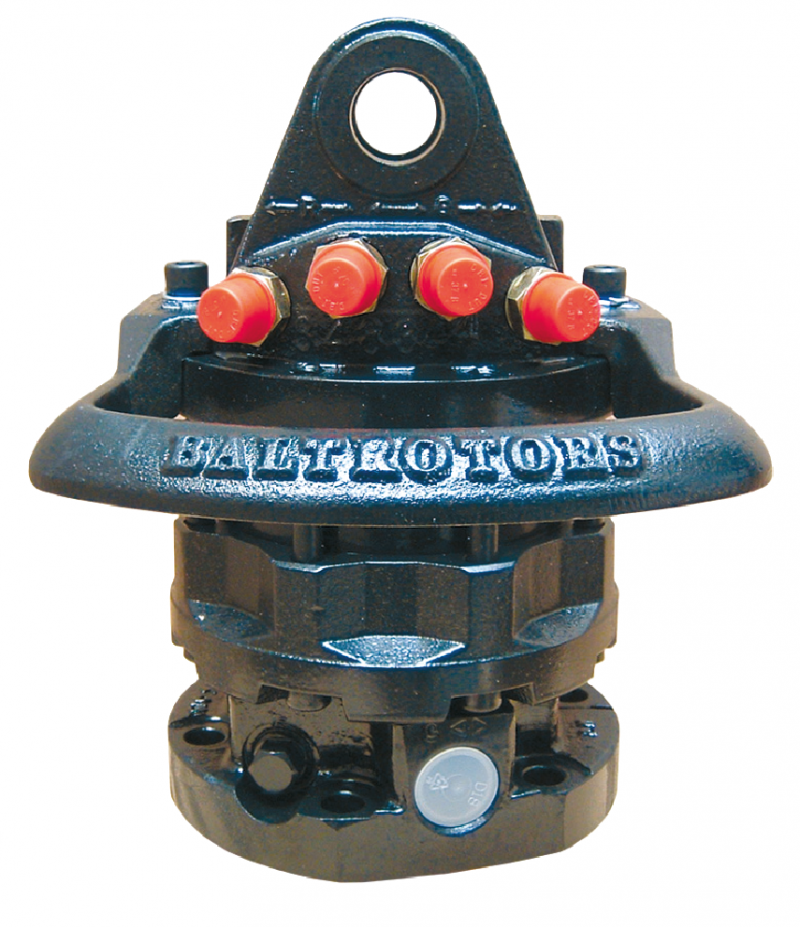

GR603 Rotator avec flasque

360° rotator with shaft or flange.

TECHNICAL CHARACTERISTICS

GR 30 Q

Max axial load static (to) : 3
Ø shaft or flange (mm) : 49.5
Ø hole or shaft or flange (mm) : 25
Max working pressure (bar) - Rotator : 250
Max working pressure (bar) - Open : 200
Max working pressure (bar) - Closed : 300
Weight (kg) : 18

GR 603

Max axial load static (to) : 6
Ø shaft or flange (mm) : 173
Ø hole or shaft or flange (mm) : 6 x 17
Max working pressure (bar) - Rotator : 250
Max working pressure (bar) - Open : 200
Max working pressure (bar) - Closed : 300
Weight (kg) : 43

FHR 3000 L

Max axial load static (to) : 3
Ø shaft or flange (mm) : 49.5
Ø hole or shaft or flange (mm) : 25
Max working pressure (bar) - Rotator : 250
Max working pressure (bar) - Open : 200
Max working pressure (bar) - Closed : 300
Weight (kg) : 18
