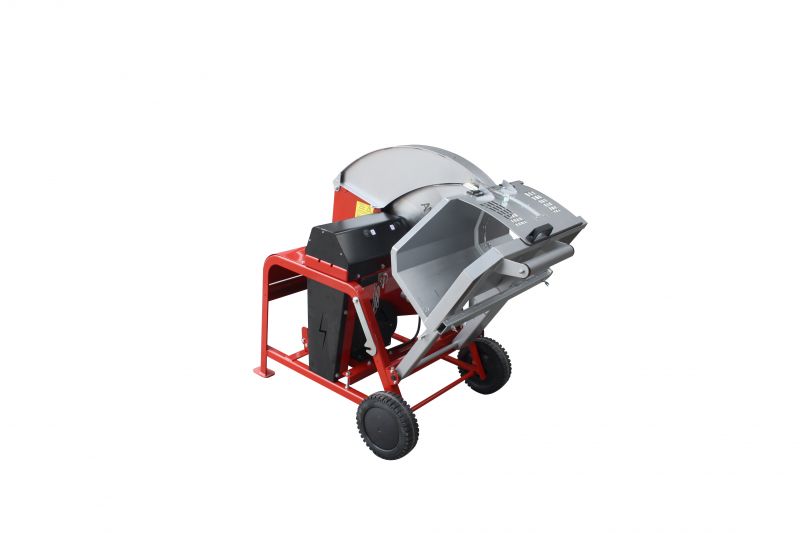

Circular log carriage saw - WSA series

Amr logo sans texte

NEW : Available in 5 different power supply

POwer supply : 400 V direct drive / 400 V belt drive / PTO tractor belt drive / PTO tractor + belt drive / Ess with belt drive
Ø max.round or splitted log : 24 cm

According to EN-Norm 1870-6  2017

Request for information
Information and quotations

General characteristics

  • 3 wheels and carrying handle for easy handling
  • TCT saw blade Ø 700 mm
  • High quality painting
  • Overload protection circuit breaker and safety limit switch on cover ( for electric motor )

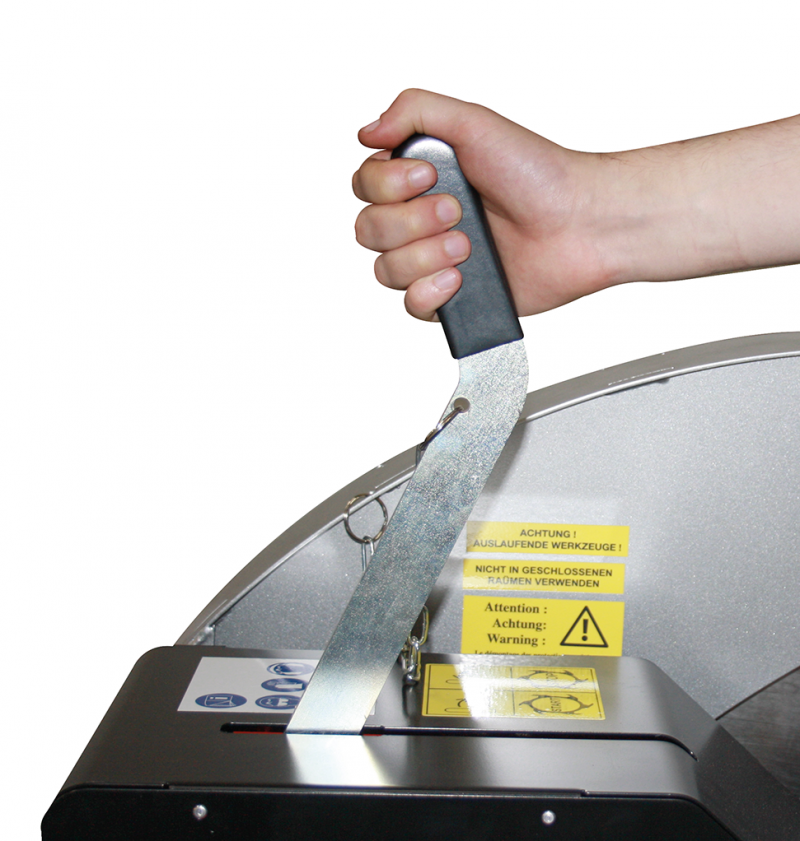

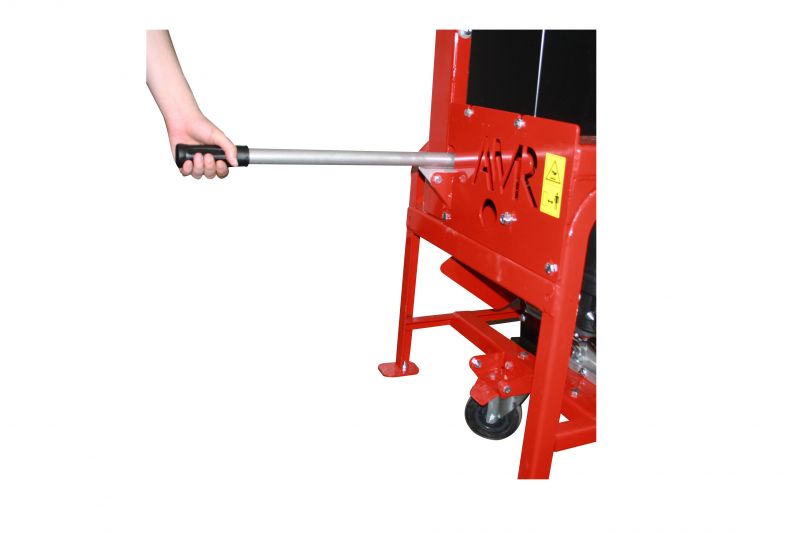

  • Emergency stop lever at PTO and gasoline version
  • Ergonomic easy tilting

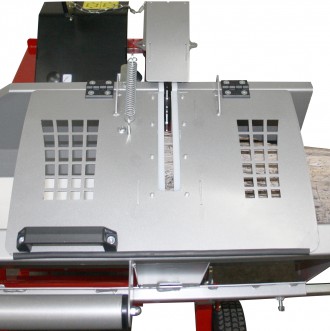

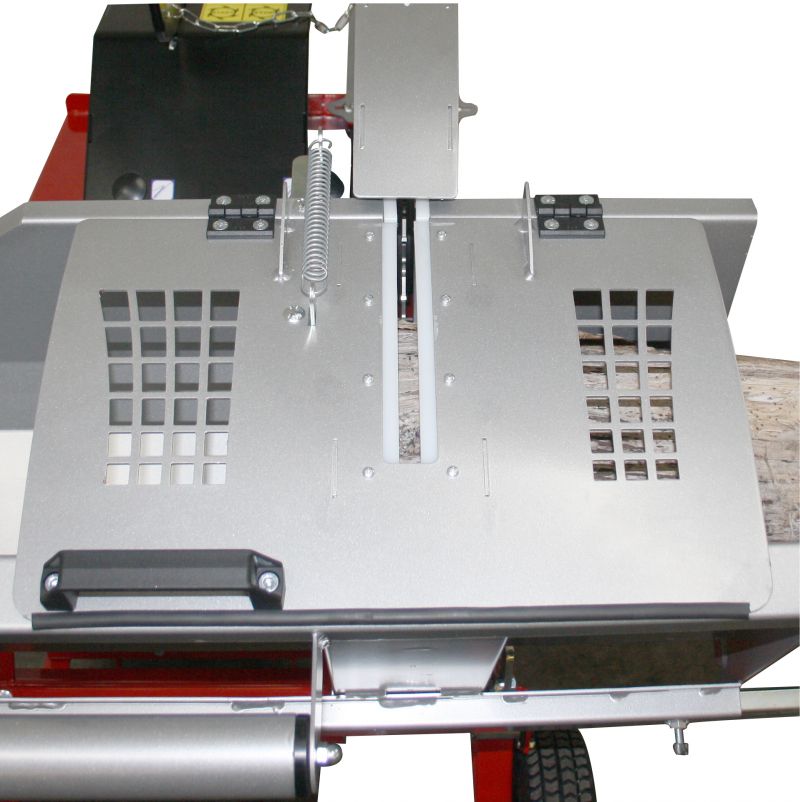

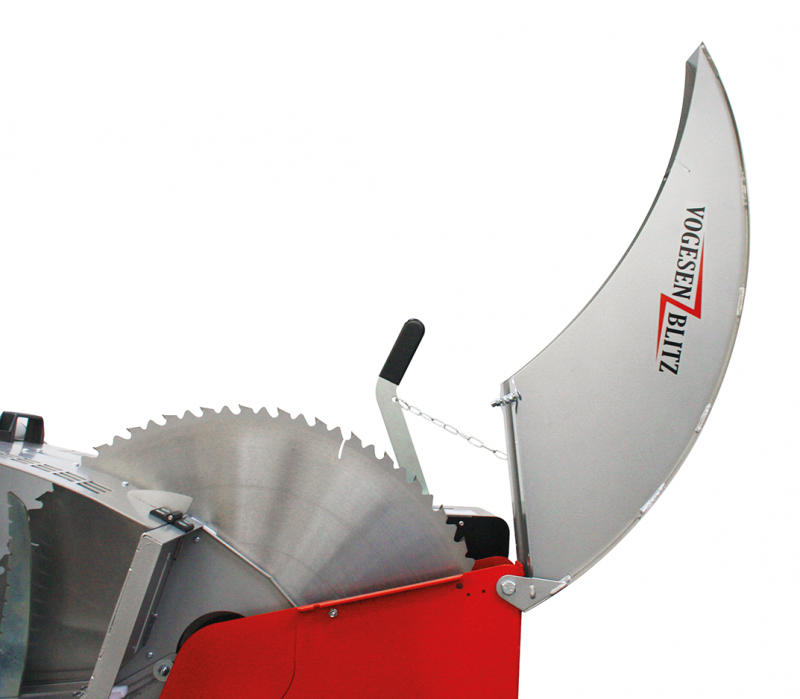

  • Protective cover according to EN 1870-6
  • Adjustable cutting length indicator

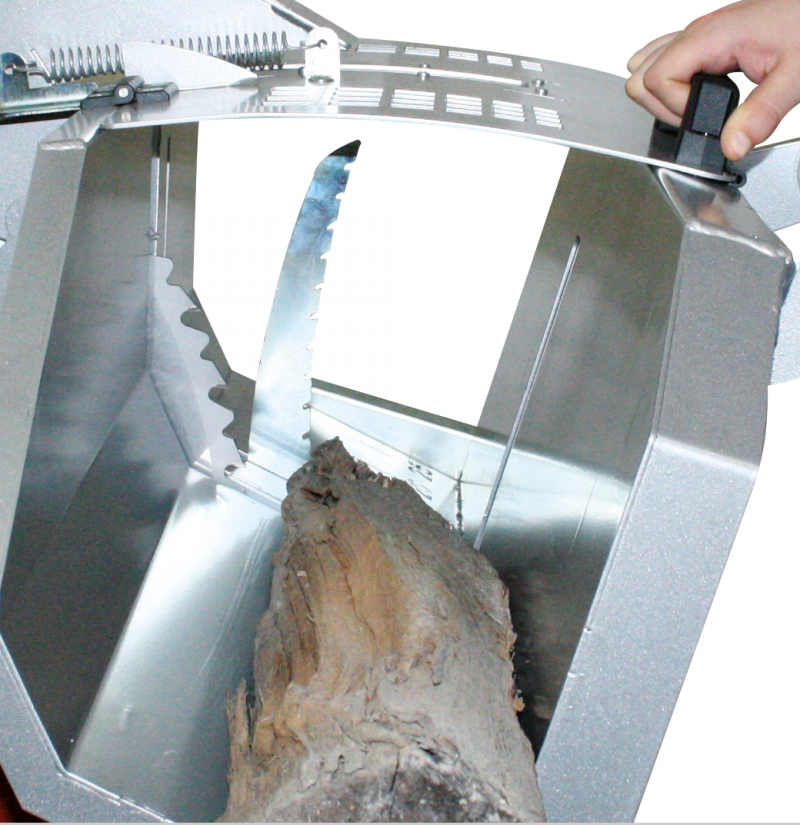

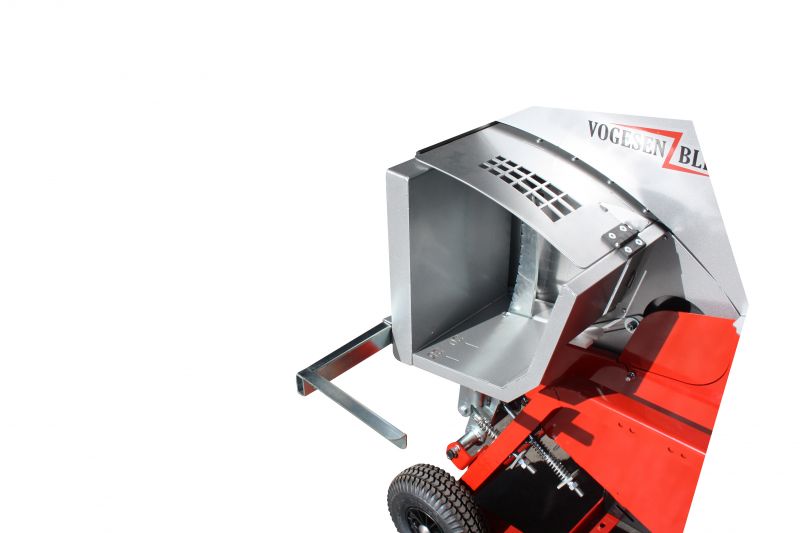

  • Wood holding arm during saw process
  • Welded and reinforced frame
  • Certified EN 1870-6
  • Warranty : 2 years

Options :

- Serial TCT blade Ø 700mm and boring 300 mm, 42 teeth
- PTO shaft type 3

TECHNICAL CHARACTERISTICS

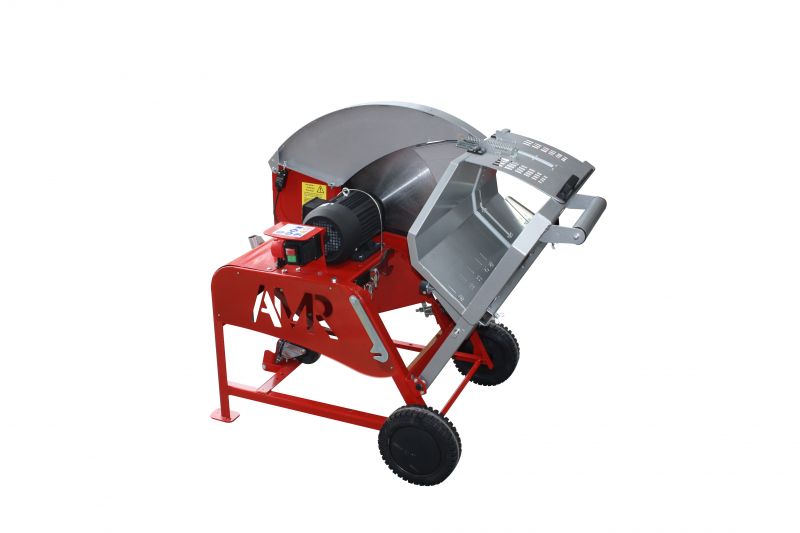

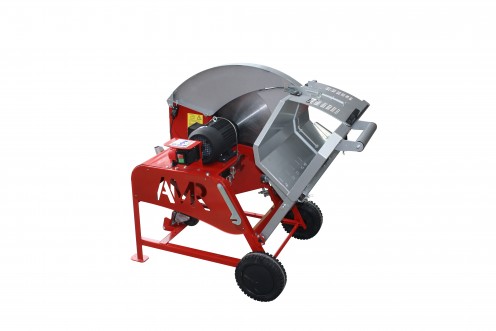

WSA 700 ED

WSA 700 ED

  • Power supply : Power supply Elec. 400 V / 15.5 kW / 16 A - direct drive
  • TCT blade - Ø700/30 mm, 42 teeth : Standard
  • Ø max. round or splitted log (cm) : 24
  • Electric motor speed (rpm) : 1350
  • Weight (kg) : 142

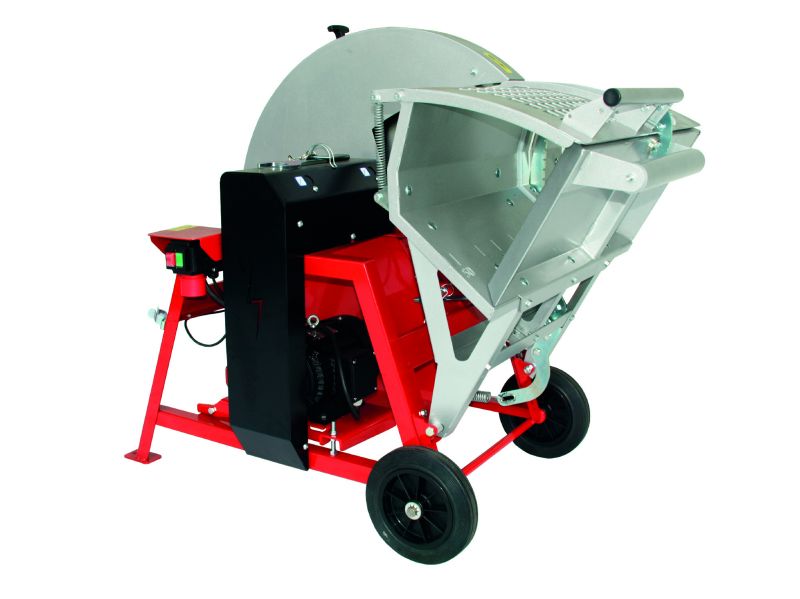

WSA 700 EC

WSA 700 EC

  • Power supply : Elec. 400 V / 7.5 kW / 16 A - belt drive
  • TCT blade - Ø700/30 mm, 42 teeth : Standard
  • Ø max. round or splitted log (cm) : 24
  • Electric motor speed (rpm) : 1350
  • Weight (kg) : 162

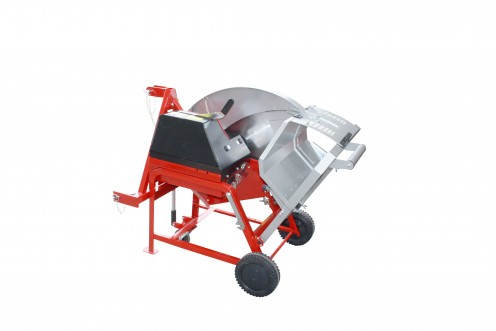

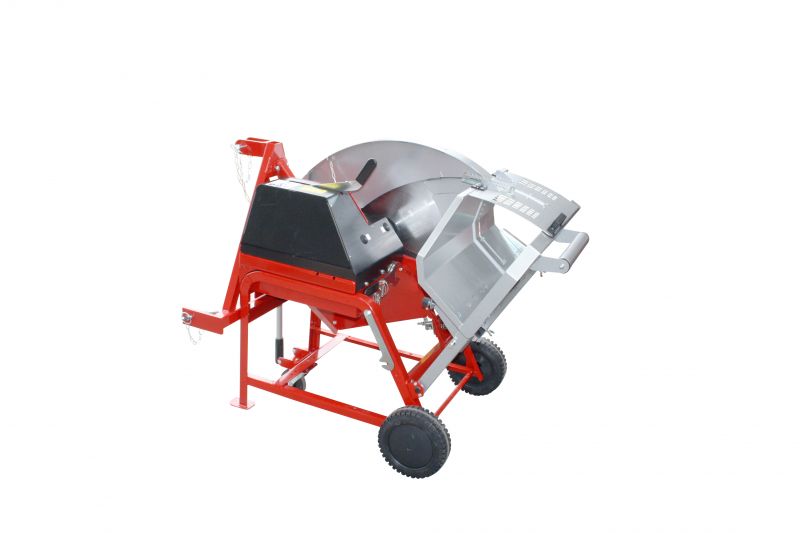

WSA 700 P

WSA 700 P

  • Power supply : PTO tractor belt drive
  • TCT blade - Ø700/30 mm, 42 teeth : Standard
  • Ø max. round or splitted log (cm) : 24
  • Electric motor speed (rpm) : -
  • Weight (kg) : 175

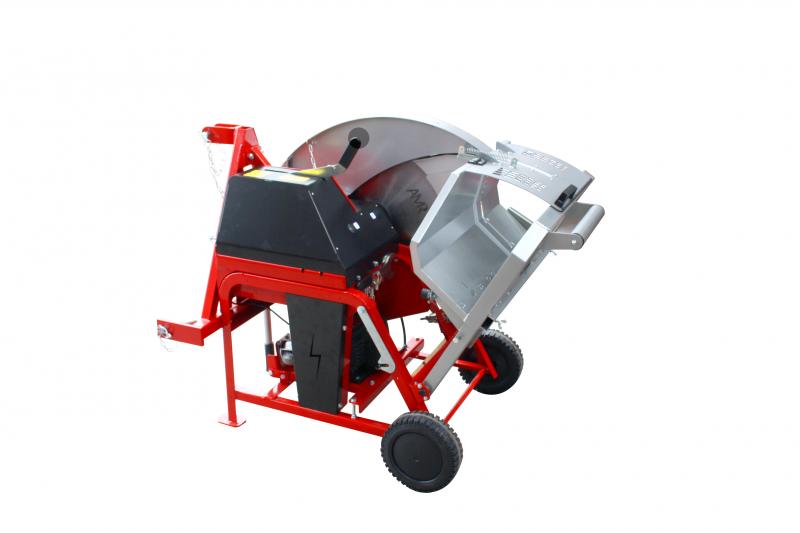

WSA 700 PE

WSA 700 PE

  • Power supply : Elec. 400 V / 7.5 kW / 16 A + PTO tractor - belt drive
  • TCT blade - Ø700/30 mm, 42 teeth : Standard
  • Ø max. round or splitted log (cm) : 24
  • Electric motor speed (rpm) : 1350
  • Weight (kg) : 220

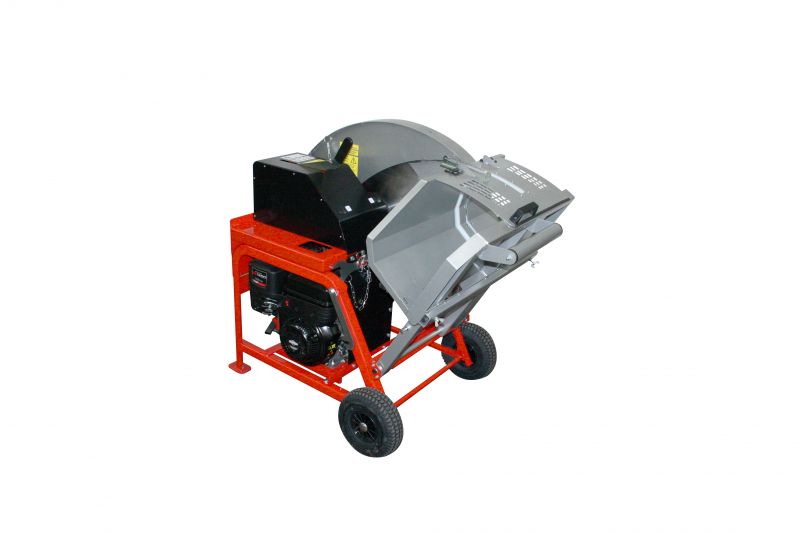

WSA 700 Ess

WSA 700 Ess

  • Power supply : Briggs & Statton Ess OHV 9 HP - belt drive
  • TCT blade - Ø700/30 mm, 42 teeth : Standard
  • Ø max. round or splitted log (cm) : 24
  • Electric motor speed (rpm) : -
  • Weight (kg) : 188
