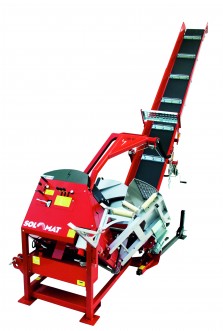

SOLOMAT - Automatic / Hydraulic /Mechanical log carriage ciruclar saw with conveyor

Back to catalog
Download the brochure Catalog Download
Logo solomat-2

Sawing wood with maximum safety and high productivity is now possible thanks to the SOLOMAT. This machine is designed to be a cost-effective, convenient and highly efficient wood production tool.

Power supply : 400V / PTO tractor / PTO tractor +Electric
Cutting capacity : More than 7 steres/hours with the automatic version. Until 7 steres/hours for the others version
Product Length: 20 cm to 52 cm (+ intermediate length)
Max. Ø of wood : 22 cm

ZLF 2016 Innovation - According to EN-Norm 1870-6  2017

Request for information
Information and quotations

General characteristics

  • Cutting capacity : until 7 steres/hr
  • High quality carbide saw blade
  • Suitable for tractors from 35 HP upwards
  • Emergency-stop lever for PTO drive
  • Saw blade easily accessible
  • Independent hydraulic system
  • Incredibly safe: no direct access to the saw blade

Working

Characteristics :

  • Log presence sensor for automatic sawing (on SOLOMAT AUTO)
  • 5 m conveyor belt with individual sections
  • Suitable for tractors from 35 HP upwards
  • Log holding system while sawing
  • No direct access to the saw blade
  • Cutting length from 20 to 52 cm

Options :

  • TCT blade Ø 700 mm x 5,0/4,0 mm
  • Tachometer and hour meter
  • PTO shaft  Type 3
  • KIT for converting a mechanical log carriage into a hydraulic log carriage

TECHNICAL CHARACTERISTICS

SIT-700E with automatic log carriage

  • Power supply : 400V / 7,5kW
  • Ø Wood mini / maxi : 50 / 220 mm
  • Max. conveyor evacuation height 5m conveyor : 3m
  • TCT blade Ø 700/30 x 5,0/4,0 mm, 42 teeth : Standard
  • Weight with 5 m pivoting conveyor (Kg) : 705
With fixed conveyor 5 m

SIT-700P with automatic log carriage

  • Power supply : PTO tractor
  • Ø Wood mini / maxi : 50 / 220 mm
  • Max. conveyor evacuation height 5m conveyor : 3m
  • TCT blade Ø 700/30 x 5,0/4,0 mm, 42 teeth : Standard
  • Weight with 5 m pivoting conveyor (Kg) : 700
With fixed conveyor 5 m

SIT-700PE with automatic log carriage

  • Power supply : Pto tractor + 400V / 7,5kW
  • Ø Wood mini / maxi : 50 / 220 mm
  • Max. conveyor evacuation height 5m conveyor : 3m
  • TCT blade Ø 700/30 x 5,0/4,0 mm, 42 teeth : Standard
  • Weight with 5 m pivoting conveyor (Kg) : 765
With fixed conveyor 5 m

SIT-700E with hydraulic log carriage

  • Power supply : Elec. 400V / 7,5kW
  • Ø Wood mini / maxi (mm) : 50/220
  • Max. conveyor evacuation height - 5m conveyor (m) : 3
  • TCT blade Ø 700/30 x 5,0/4,0 mm, 42 teeth : Standard
  • Weight with 5m conveyor (kg) : 700
With pivoting conveyor 5 m

SIT-700P with hydraulic log carriage

  • Power supply : PTO tractor
  • Ø Wood mini / maxi (mm) : 50/220
  • Max. conveyor evacuation height - 5m conveyor (m) : 3
  • TCT blade Ø 700/30 x 5,0/4,0 mm, 42 teeth : Standard
  • Weight with 5m conveyor (kg) : 680
With pivoting conveyor 5 m

SIT-700PE with hydraulic log carriage

  • Power supply : PTO tractor + Elec.400V
  • Ø Wood mini / maxi (mm) : 50/220
  • Max. conveyor evacuation height - 5m conveyor (m) : 3
  • TCT blade Ø 700/30 x 5,0/4,0 mm, 42 teeth : Standard
  • Weight with 5m conveyor (kg) : 750
With pivoting conveyor 5 m

SIT-700E with mechanical log carriage

  • Power supply : Elec. 400V / 7,5kW
  • Ø Wood mini / maxi (mm) : 50/220
  • Max. conveyor evacuation height - 5m conveyor (m) : 3
  • Max. conveyor evacuation height - 2m conveyor (m) : 1,45
  • TCT blade Ø 700/30 x 5,0/4,0 mm, 42 teeth : Standard
  • Weight with fixed conveyor 2 m : 530
  • Weight with pivoting conveyor 5 m : 680
Weight with fixed conveyor 2 m :530

SIT-700P with mechanical log carriage

  • Power supply : PTO tractor
  • Ø Wood mini / maxi (mm) : 50/220
  • Max. conveyor evacuation height - 5m conveyor (m) : 3
  • Max. conveyor evacuation height - 2m conveyor (m) : 1,45
  • TCT blade Ø 700/30 x 5,0/4,0 mm, 42 teeth : Standard
  • Weight with fixed conveyor 2 m : 575
  • Weight with pivoting conveyor 5 m : 672
Weight with fixed conveyor 2 m :575

SIT-700PE with mechanical log carriage

  • Power supply : PTO tractor + Elec.400V
  • Ø Wood mini / maxi (mm) : 50/220
  • Max. conveyor evacuation height - 5m conveyor (m) : 3
  • Max. conveyor evacuation height - 2m conveyor (m) : 1,45
  • TCT blade Ø 700/30 x 5,0/4,0 mm, 42 teeth : Standard
  • Weight with fixed conveyor 2 m : 635
  • Weight with pivoting conveyor 5 m : 730
Weight with fixed conveyor 2 m :635
