QUATROMAT - circular drum saw

Back to catalog
Download the brochure Catalog Download
Logo quatromat-2

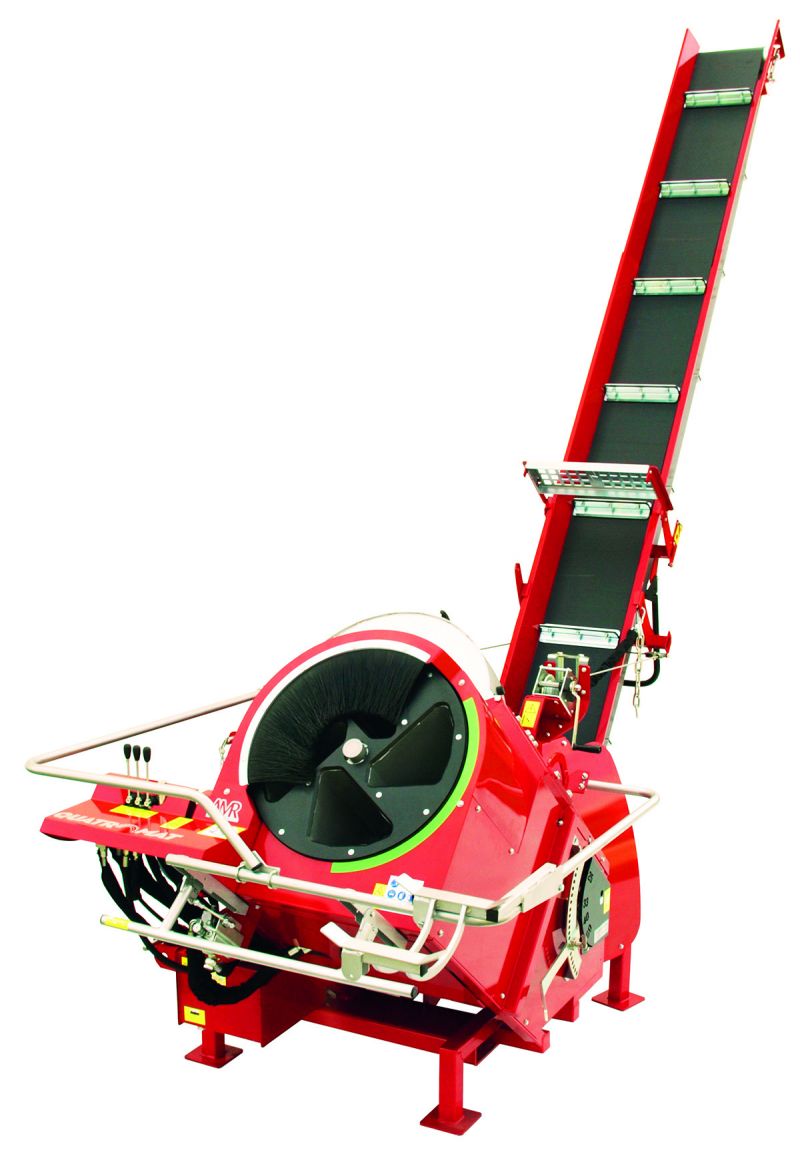

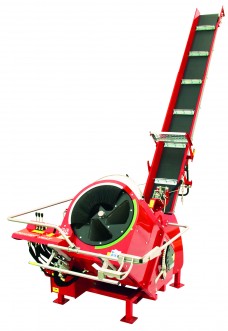

With our automatic drum saw with 4 channels enables you to cut extremely fast with high performance and maximum safety.

Power supply : PTO tractor / PTO tractor + Electric
Cutting capacity : until 10-14/hour
Product Length : 20 cm to 52 cm (+ intermediate length) / 20-40cm available
Length of wood : 1 m
Max.Ø round log / splitted log : 16/24 cm

According to EN-Norm 1870-6  2017

5000 MACHINES ALREADY SOLD !

Request for information
Information and quotations

General characteristics

  • Double-acting cylinder on the conveyor belt
  • Drive clutch for the saw blade with emergency stop.
  • Cutting capacity : until 10-14 steres/hr

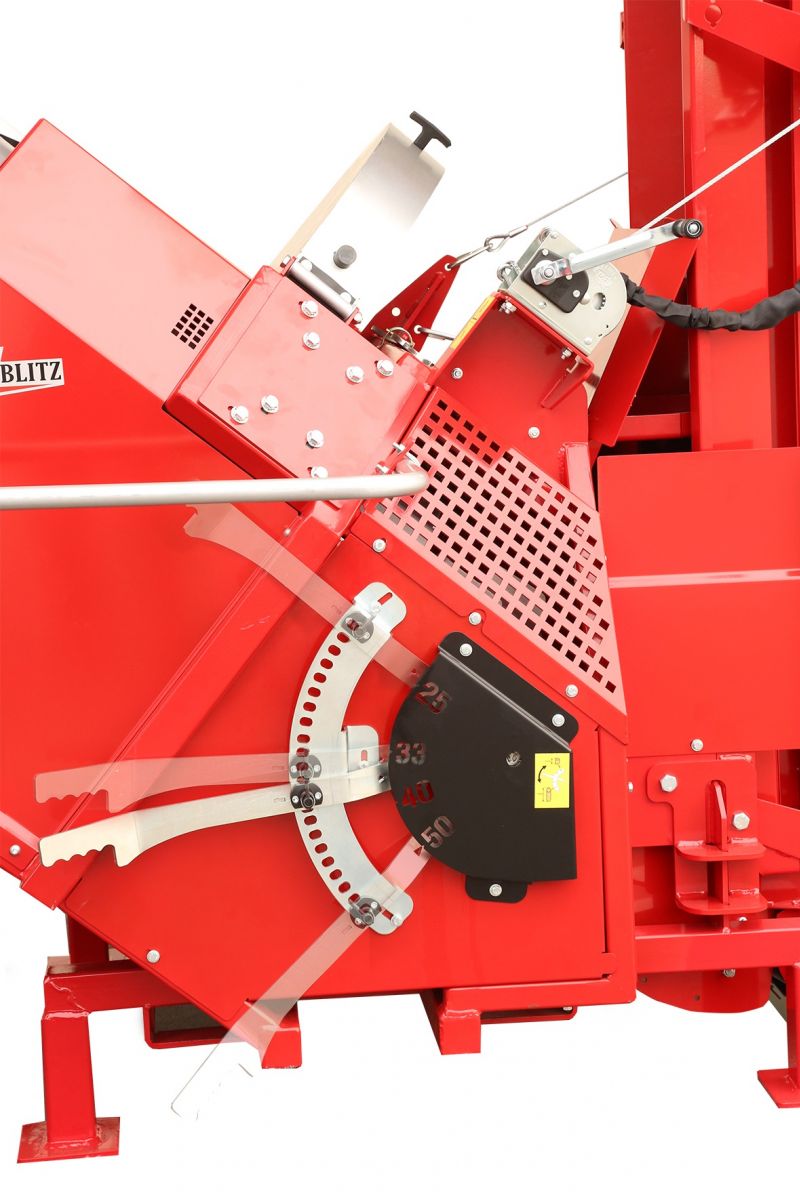

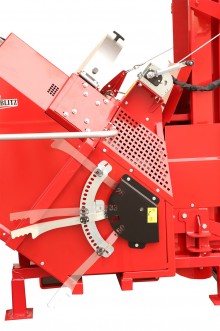

  • Cutting length adjustable from 25 to 52 cm. ( 20 - 40 cm available ) without tools and dismantling
  • Drum rotational speed and conveyor speed adjustable
  • 5 m x 35 cm belt with hydraulic drive
  • Electric engine 9,2 kW, 400 V, CEE 32 A
  • Safety grid
  • Specific TCT blade, 700 mm x 6/4.5 mm thick

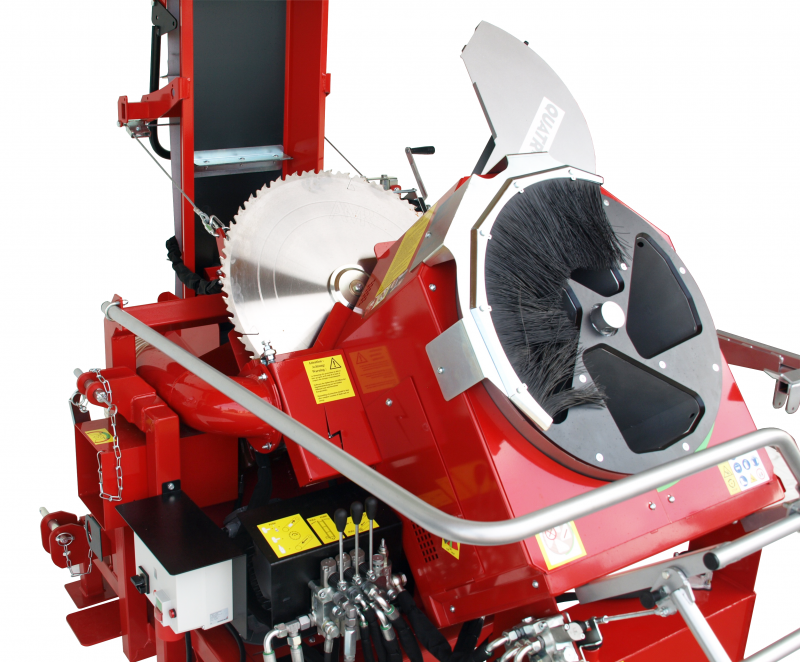

  • Safety : no direct access to saw blade

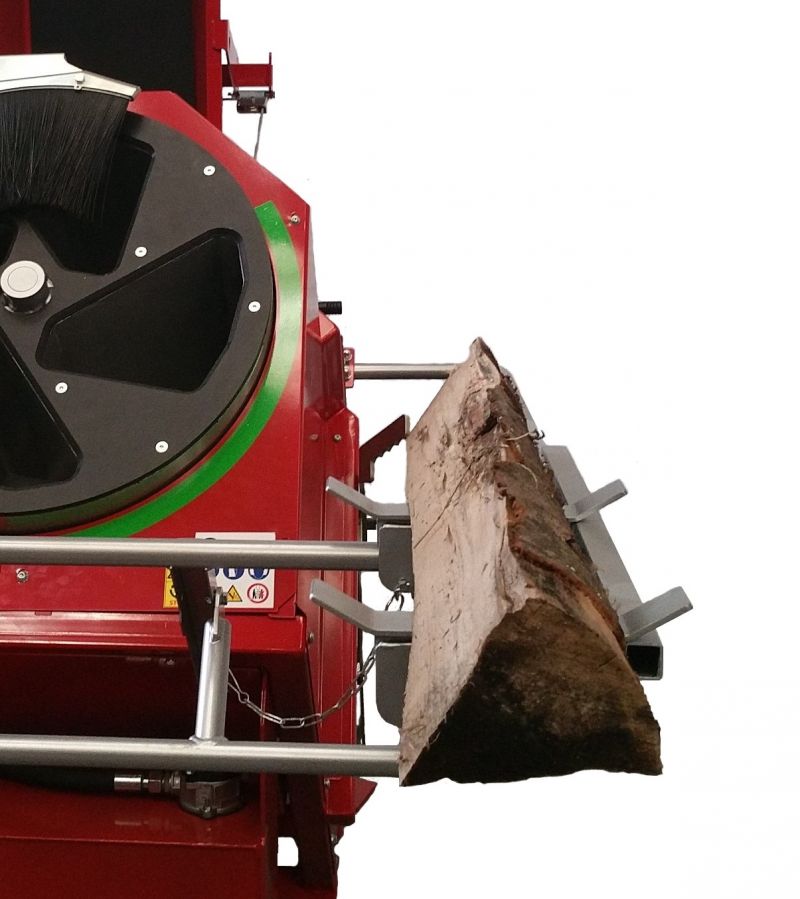

  • Wood disposal support included
  • Torque limitator included
  • Suitable for tractors from 35 HP upwards

OPTIONS

  • Axle carrier ( 280 kg )
  • TCT blade Ø700 mm x 6.0/4.5 Ø30 mm z=72

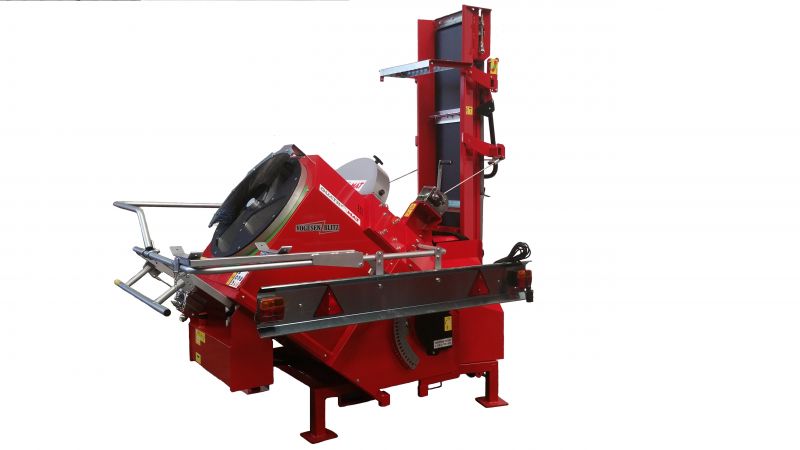

  • Lighting ramp
  • Tachometer and hour meter
  • PTO shaft type 3
  • PTO shaft type 3  - Model with transport axle
  • 400 V female plug 32A

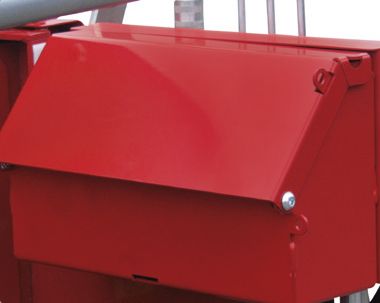

  • Toolbox

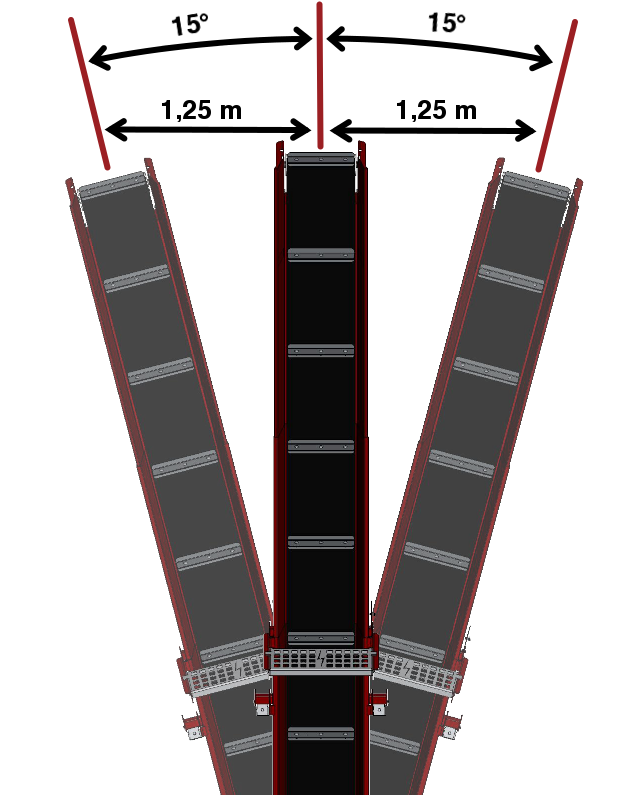

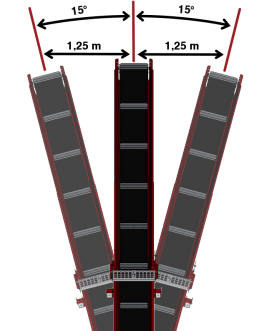

Quatromat is available with an orientable belt







TECHNICAL CHARACTERISTICS

SAT4 - 700 PTH

  • Power supply : PTO tractor
  • Number of chambers : 4
  • Length of wood (m) : 1
  • Max. Ø round log / splitted log (cm) : 16 / 24
  • Max. cut / minute : 60
  • Cutting length (cm) : 25, 33, 50 cm + intermediate
  • Pump : 14 L with 540 rpm
  • TCT blade Ø 700 mm : 6.0/4.5 Ø30 mm
  • Conveyor length (m) / Max height of evacuation (m) : 5 / 3
  • 3-point tractor : Cat. I and II
  • Dimension of transport (HxLxW) (cm) : 245 x 210 x 160
  • Weight (kg) : 901

SAT4 - 700 PETH

  • Power supply : PTO tractor + Elec. 400V /9,2kW combined
  • Number of chambers : 4
  • Length of wood (m) : 1
  • Max. Ø round log / splitted log (cm) : 16 / 24
  • Max. cut / minute : 60
  • Cutting length (cm) : 25, 33, 50 cm + intermediate
  • Pump : 14 L with 540 rpm
  • TCT blade Ø 700 mm : 6.0/4.5 Ø30 mm
  • Conveyor length (m) / Max height of evacuation (m) : 5 / 3
  • 3-point tractor : Cat. I and II
  • Dimension of transport (HxLxW) (cm) : 245 x 210 x 160
  • Weight (kg) : 968

SAT4 - 700 PTHO

  • Power supply : PTO tractor with orientable conveyor
  • Number of chambers : 4
  • Length of wood (m) : 1
  • Max. Ø round log / splitted log (cm) : 16 / 24
  • Max. cut / minute : 60
  • Cutting length (cm) : 25, 33, 50 cm + intermediate
  • Pump : 14 L with 540 rpm
  • TCT blade Ø 700 mm : 6.0/4.5 Ø30 mm
  • Conveyor length (m) / Max height of evacuation (m) : 5 / 3
  • 3-point tractor : Cat. I and II
  • Dimension of transport (HxLxW) (cm) : 245 x 210 x 160
  • Weight (kg) : 917

SAT4 - 700 PETHO

  • Power supply : Kombinierter Antrieb mit Zapfwellenantrieb und E-Motor, schwenkbares Förderband
  • Number of chambers : 4
  • Length of wood (m) : 1
  • Max. Ø round log / splitted log (cm) : 16 / 24
  • Max. cut / minute : 60
  • Cutting length (cm) : 25, 33, 50 cm + intermediate
  • Pump : 14 L with 540 rpm
  • TCT blade Ø 700 mm : 6.0/4.5 Ø30 mm
  • Conveyor length (m) / Max height of evacuation (m) : 5 / 3
  • 3-point tractor : Cat. I and II
  • Dimension of transport (HxLxW) (cm) : 245 x 210 x 160
  • Weight (kg) : 984
